Hugh Murray And Son Lower Link Pins- Forged Lift Arm Pins (11 Sizes Available)
Couldn't load pickup availability
Shop now for Hugh Murray And Son Lower Link Pins. Oz General Store - Australia's online store!
Keep your tractor operating at peak performance with Hugh Murray & Son Lower Link Pins, engineered for strength, reliability, and long service life. Designed to securely connect your implement to the tractor's lower lift arms, these premium linkage pins are a must-have for maintaining safe and efficient three-point linkage operation.
Key Features
-
Precision Machined: Ensures a tight, secure fit for stable and efficient linkage performance.
-
Easy Installation & Removal: Smooth design with standardised sizing for fuss-free operation.
-
Suitable for Most Tractor Brands: Compatible with standard three-point linkage systems used across Australian farming machinery.
Perfect For
-
Replacing worn, damaged or missing lower link pins
-
Three-point linkage maintenance
-
Farm machinery repairs
-
Tractors, slashers, cultivators, graders & more
Why Choose Hugh Murray & Son?
Known for exceptional build quality, Hugh Murray & Son have been a trusted name in agricultural hardware for decades. Their lower link pins deliver long-lasting performance, supporting farmers, contractors, and machinery operators with parts that withstand heavy-duty use.

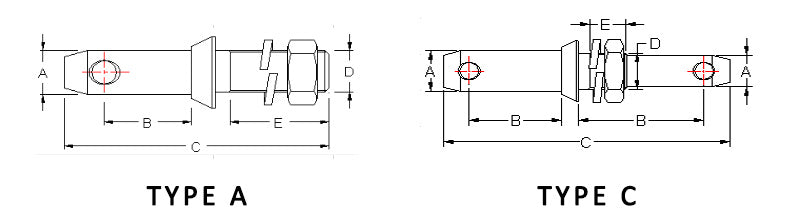

| Weight | Type | Cat | #A | #B | #C | #D | #E |

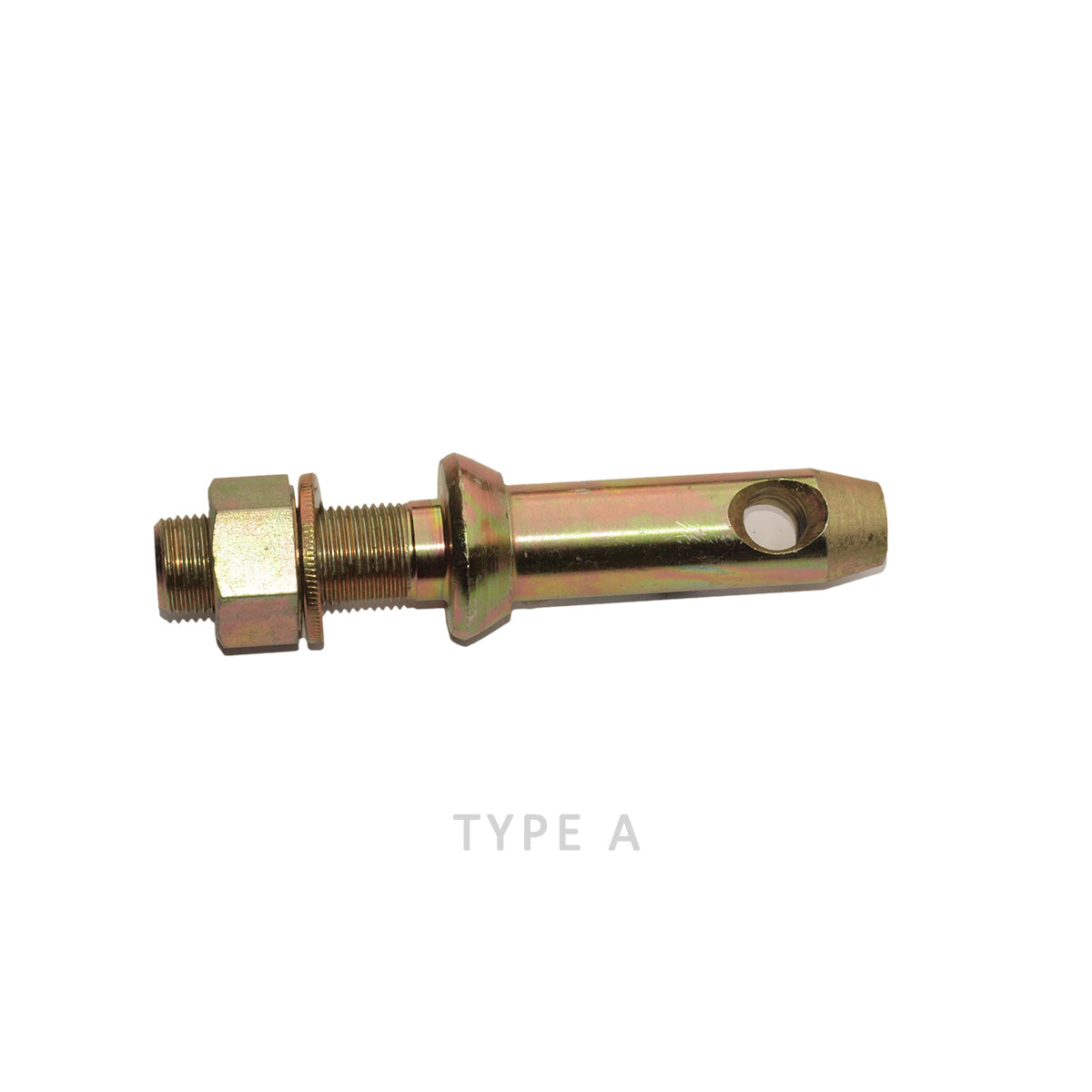

| 0.412 kg | A | 1 | 22mm | 51mm | 137mm | 7/8 inches UNF | 41mm |
| 0.432 kg | A | 1 | 22mm | 51mm | 137mm | 3/4 inches UNF | 47mm |
| 0.645 kg | A | 1 to 2 | 28.5mm | 60mm | 150mm | 3/4 inches UNF | 54mm |
| 0.680 kg | A | 1 to 2 | 28.5mm | 60mm | 137mm | 7/8 inches UNF | 35mm |
| 0.630 kg | A | 2 to 1 | 22mm | 51mm | 144mm | 1 inches UNF | 51mm |
| 0.820 kg | A | 2 | 28.5mm | 60mm | 150mm | 1 inches UNF | 51mm |
| 0.981 kg | A | 2 | 28.5mm | 57mm | 164mm | 1-1/8 inches UNF | 60mm |
| 0.703 kg | A | 2 to 1 | 22mm | 51mm | 145mm | 1-1/8 inches UNF | 60mm |

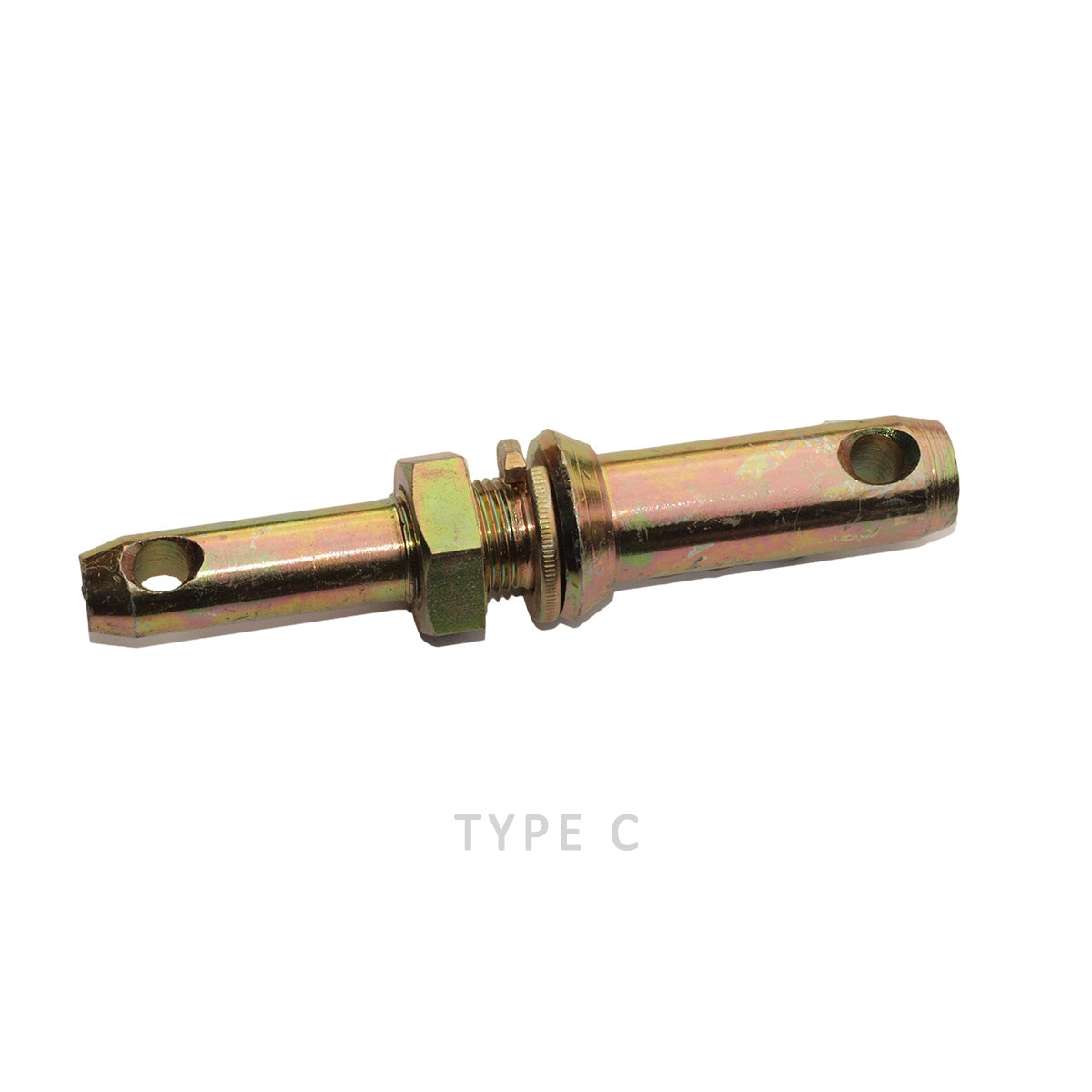

| 0.855 kg | C | 1 & 2 | 28.5mm & 22mm | 62mm & 84mm | 190mm | 1 inches UNF | 25mm |
| 0.945 kg | C | 1 & 2 | 28.5mm & 22mm | 62mm & 89mm | 197mm | 1-1/8 inches UNC |
31mm |
________________________________________________________________________________________________
Please note: The images shown are for illustrative purposes only. Products and their specifications may be subject to change without prior notice.
